Precise · Efficient · Stable

Automatic Bender Machines for Precision Die Making

VOLDY Machinery has built steel rule bending automation in Guangdong, China since 2003 — more than 20 years of R&D behind every machine, with a self-developed control system and complete die shop support.

Get a Quote View Products
VOLDY VB630S automatic bender machine with auto rule cassette on a factory floor
  • Since 2003 20+ years R&D
  • CE Certified product lines
  • 110V / 220V global voltage
  • One-Stop die shop solution

Product Range

Die Making Machines & Die Shop Equipment

Twelve product series covering automatic bending, laser cutting, creasing, knife cutting, welding and manual tooling — one supplier for a complete die shop.

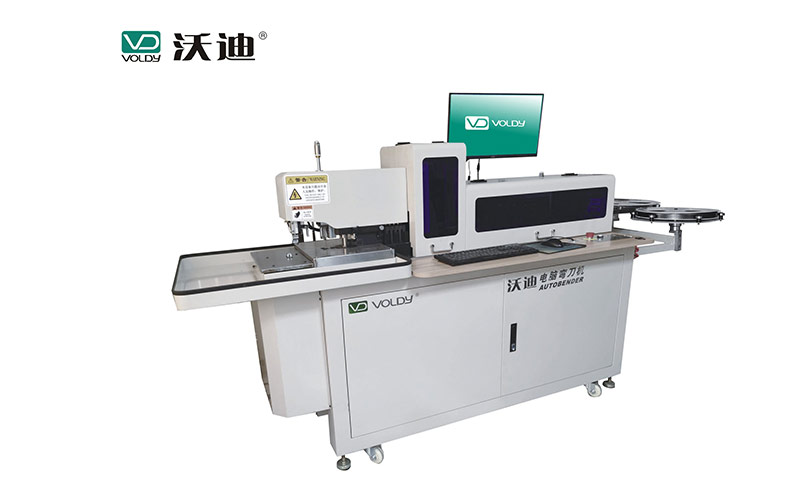

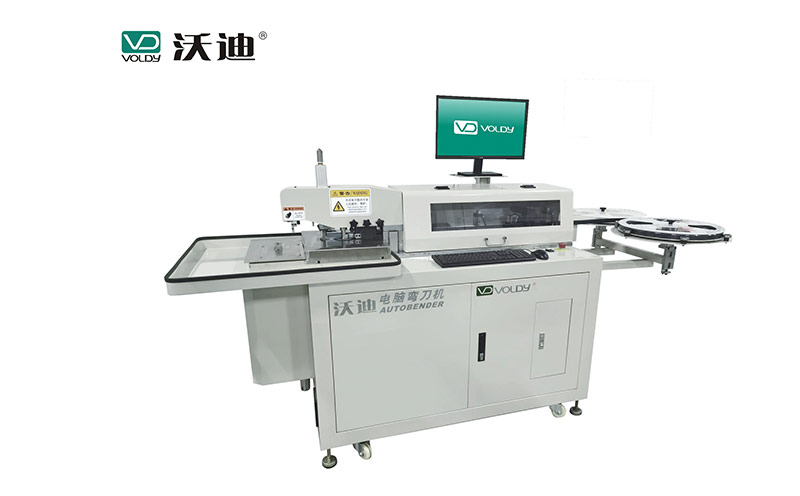

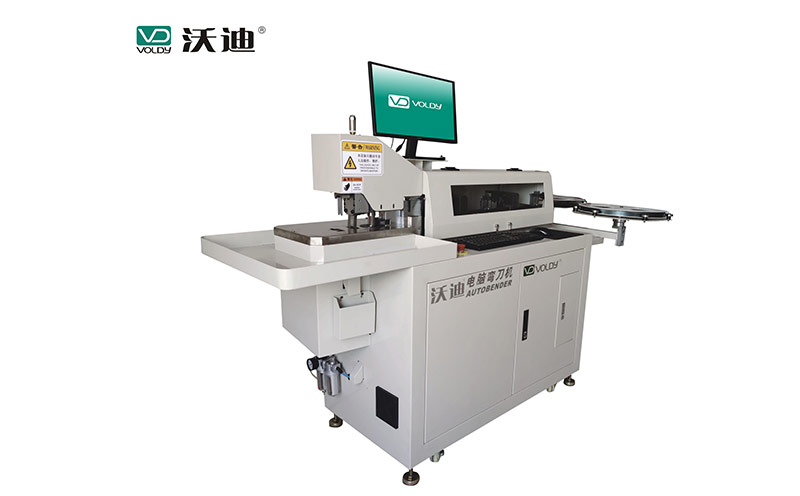

Auto Benders

VOLDY's automatic bending machine range — often called an auto bender or autobender — is a CNC steel rule bending machine family covering rule thicknesses from 0.45 to 1.42 mm and rule heights up to 60 mm, with feeding accuracy down to ±0.03 mm.

VOLDY VB630S full-function precision automatic bender with bend-cut unit

VB630S

Full-Function Precision Automatic Bender

Flagship line: an integrated bend-cut unit enables unattended rule bending and cutting for high-volume die shops.

Steel rule0.45 / 0.53 / 0.71 / 1.07 mm
Feeding accuracy±0.03 mm
Max rule height≤30 mm (23.8 mm at 1.07 mm)
Get Specs
Full specifications
ModelVB630S
Machine typeFull-function precision automatic bender (flagship)
Steel rule thickness0.45 / 0.53 / 0.71 / 1.07 mm
Rule height≤30 mm (≤23.8 mm for 1.07 mm rule)
Feeding accuracy±0.03 mm
Bend-cut unitIntegrated, supports unattended operation
Grinding / nicking stations3 grinding, nicking and punching stations
Power2.8 kW
Net weight600 kg
Dimensions (L×W×H)2800 × 830 × 1600 mm
VOLDY VB330S multi-function precision automatic bender

VB330S

Multi-Function Precision Automatic Bender

Bend-cut unit plus a multi-function module, with optional automatic punching for flexible die-room workflows.

Steel rule0.45–1.07 mm
Feeding accuracy±0.03 mm
Power2.0 kW
Get Specs
Full specifications
ModelVB330S
Machine typeMulti-function precision automatic bender
Steel rule thickness0.45–1.07 mm
Feeding accuracy±0.03 mm
Function modulesBend-cut unit + multi-function module
Automatic punchingOptional
Power2.0 kW
Net weight500 kg
Dimensions (L×W×H)2600 × 830 × 1600 mm
VOLDY VB330T multi-function precision automatic bender

VB330T

Multi-Function Precision Automatic Bender

Multi-function precision bending with ±0.03 mm feeding in a space-efficient footprint.

Steel rule0.45–1.07 mm
Feeding accuracy±0.03 mm
Power2.0 kW
Get Specs
Full specifications
ModelVB330T
Machine typeMulti-function precision automatic bender
Steel rule thickness0.45–1.07 mm
Feeding accuracy±0.03 mm
Power2.0 kW
Net weight500 kg
Dimensions (L×W×H)2800 × 830 × 1600 mm
VOLDY VB360E universal automatic bender for thick and high steel rules

VB330E / VB360E

Universal Automatic Bender

Covers thick rules up to 1.42 mm; the VB360E processes high rules up to 60 mm for heavy-duty die work.

Steel rule0.45–1.42 mm
Max rule height60 mm (VB360E)
Feeding accuracy±0.03 mm
Get Specs
Full specifications
ModelsVB330E / VB360E
Machine typeUniversal automatic bender
Steel rule thickness0.45–1.42 mm
Maximum rule height60 mm (VB360E)
Feeding accuracy±0.03 mm
Power2 kW
Net weight560 kg
Dimensions (L×W×H)2800 × 830 × 1600 mm
VOLDY VB312E low-rule automatic bender machine

VB312E

Low-Rule Automatic Bender

Purpose-built for 0.45 mm thin, 8–12 mm high low rules, with ±0.02 mm / 300 mm feeding accuracy.

Dedicated rule0.45 mm, 8–12 mm high
Feeding accuracy±0.02 mm / 300 mm
Power2.0 kW
Get Specs
Full specifications
ModelVB312E
Machine typeLow-rule automatic bender
Dedicated rule0.45 mm thickness, 8–12 mm height
Feeding accuracy±0.02 mm / 300 mm
Power2.0 kW
Net weight380 kg
Dimensions (L×W×H)2000 × 850 × 1500 mm
VOLDY VB230L entry-level automatic bender machine

VB230L / VB260L

Entry-Level Automatic Bender

A cost-effective first step into automatic bending; the VB260L accepts rule heights up to 60 mm.

Steel rule0.45–1.42 mm
Max rule height60 mm (VB260L)
Power2 kW
Get Specs
Full specifications
ModelsVB230L / VB260L
Machine typeEntry-level automatic bender
Steel rule thickness0.45–1.42 mm
Maximum rule height60 mm (VB260L)
Power2 kW
Net weight500 kg
Dimensions (L×W×H)2360 × 830 × 1600 mm

Cutting, Laser & Welding

VOLDY VC30 automatic creasing cutter with seven rule reels

VC30 / VC35

Automatic Creasing Cutter

An automatic creasing cutting machine that feeds, cuts and sorts creasing rule by length from seven material reels.

Creasing rule0.71–1.07 mm, ≤25 mm high
Cutting speed30 m/min
Reels & sorting7 reels, auto length sorting
Get Specs
Full specifications
ModelsVC30 / VC35
Machine typeAutomatic creasing cutter
Creasing rule thickness0.71–1.07 mm
Creasing rule height≤25 mm
Cutting speed30 m/min
Material reels7
Material sortingAutomatic sorting by cut length
Power1.8 kW / 1.4 kW

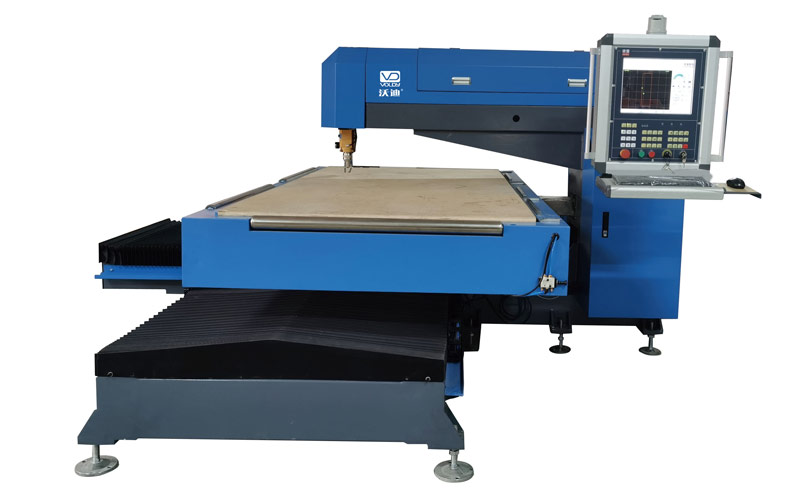

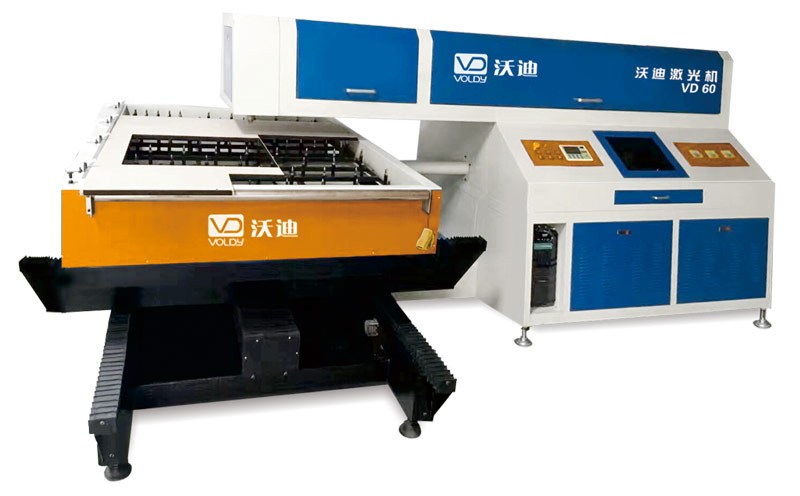

VOLDY VD40 / VD60 fixed-path laser die cutting machine with a plywood die board on the cutting table

VD40 / VD60

Fixed-Path Laser Die Cutter

A fixed-optics die-board laser cutting machine for cutting 18 mm die boards at ±0.05 mm precision.

Laser power400 W / 600 W CO2
Working area1200 × 1800 mm
Cutting accuracy±0.05 mm
Get Specs
Full specifications
ModelsVD40 / VD60
Machine typeFixed-path laser die cutter
Laser source400 W / 600 W CO2, fixed optical path
Working area1200 × 1800 mm
Cutting accuracy±0.05 mm
18 mm wood board speed28 m/h (VD40) / 35 m/h (VD60)
VOLDY VLC1224 mixed-path CO2 laser cutting machine with 1220 by 2440 mm bed

VLC1224

Mixed-Path Laser Cutting Machine

High-power axial fast-flow CO2 with HIWIN screws and Panasonic servos; cuts carbon steel and non-metals.

Laser power1500 W / 2200 W axial fast-flow CO2
Working area1220 × 2440 mm
Positioning accuracy±0.02 mm
Get Specs
Full specifications
ModelVLC1224
Machine typeMixed-path laser cutting machine
Laser source1500 W / 2200 W axial fast-flow CO2
Working area1220 × 2440 mm
TransmissionHIWIN ball screws + Panasonic servo motors
Positioning accuracy±0.02 mm
Cutting capacityCarbon steel 12–14 mm; non-metal 20 mm
Power supplyThree-phase 380 V
VOLDY VDOCUT oscillating knife cutter for honeycomb board, corrugated board and foam

VDOCUT

Oscillating Knife Cutter

Digital knife cutting for packaging boards, foams and composites from 0.2 to 60 mm thick.

Cutting thickness0.2–60 mm
Cutting speed≤1200 mm/s
Positioning accuracy±0.1 mm
Get Specs
Full specifications
ModelVDOCUT
Machine typeOscillating knife cutter
Table sizes1400 × 1000 / 1800 × 1600 / 2500 × 1600 mm
Cutting thickness0.2–60 mm
Cutting speed≤1200 mm/s
Positioning accuracy±0.1 mm
Typical materialsHoneycomb board, corrugated board, EPE pearl foam, composite materials
VOLDY VDLW automatic fiber laser welding machine for steel rule dies

VDLW1 / VDLW2

Automatic Laser Welding Machine

Air-cooled 800 W fiber laser welding across the full 1pt–4pt rule range.

Laser800 W fiber, air-cooled
Welding speed0–120 mm/s
Welding depth0–3 mm
Get Specs
Full specifications
ModelsVDLW1 / VDLW2
Machine typeAutomatic laser welding machine
Laser source800 W fiber laser, air-cooled
Welding speed0–120 mm/s
Welding depth0–3 mm
Rule coverageFull range, 1pt–4pt steel rules
VOLDY manual die shop tools including manual bender, bridge punch, rule cutter and trimmer

Manual Die-Shop Tools

Complete Manual Die-Making Tool Set

Essential die-making tools: bench machines and material handling for die rooms starting up or backing up automatic lines.

Manual bender36 bending die sets
Bench machinesBridge punch, rule cutter, trimmer
Stock rackAuto-lifting, 6 reels
Get Specs
Full specifications
ProductManual Die-Shop Tools (combined series)
Manual benderManual rule bender with 36 die sets
Bridge punchManual bridge punching machine (bridge-position nicking)
Rule cutterManual steel rule cutting machine
TrimmerLipping machine (manual rule trimming / edging)
Material rackAutomatic lifting stock rack, 6 reels/trays

Why VOLDY

Built for Die Shops That Need Reliable Uptime

Precise, efficient and stable machinery — backed by the software, consumables and process knowledge to keep it running.

Self-Developed Control System & Software

VOLDY develops its own control system and bending software in house. Machines can be customized to specific workflows, and after-sales support is delivered directly by VOLDY — no third-party vendor dependency for parts or troubleshooting.

30% Faster, Non-Intermittent Feeding

VOLDY automatic benders use a non-intermittent feeding system instead of a single-screw feed, making rule feeding approximately 30% faster than conventional single-screw benders — with feeding accuracy held at ±0.03 mm.

One-Stop Die Shop Solution

VOLDY supplies machines, consumables, operator training and process know-how from a single source — from benders and lasers to creasing cutters, welding machines and manual tooling for a fully equipped die room.

Export-Ready Configuration

The bender line accepts 110V/220V 50/60Hz single-phase power, ships in export wooden crating, and clears customs under HS Code 8462230000. CE-certified product lines are available.

Training & After-Sales Support

Every line ships with operator training and die-making process know-how, supported by on-site and online after-sales service from VOLDY's own engineering teams in Dongguan and Foshan.

Applications

Steel Rule Dies Across Three Industries

Dies for printing — rotary and flat steel rule dies produced with VOLDY die-making equipment

Dies for printing & packaging — rotary and flat steel rule dies.

Precision steel rule dies for electronics — foam, film and adhesive cutting dies bent by VOLDY automatic benders

Precision dies for electronics — foam, film, adhesive and protective parts.

Printing & Packaging Dies

Folding carton, corrugated and label die-cutting forms bent from standard and high steel rules, paired with VOLDY laser die-board cutting machines and creasing cutters.

Electronics Dies

Precision die sets for cutting foam, film, adhesive and protective components, where the ±0.03 mm feeding accuracy of VOLDY automatic benders protects tight tolerances.

Leather & Textile Dies

Cutting dies for footwear, bags and garment accessories, including thick-rule and high-rule jobs handled by the VB360E and VB260L up to 60 mm rule height.

Service

A Partner From Die-Room Layout to Daily Production

  1. Die-Room Setup Proposal

    VOLDY proposes machine combinations and a die-room layout matched to product mix, expected output and available factory space — for new die shops and expanding lines alike.

  2. Process Know-How Sharing

    More than 20 years of die-making automation experience since 2003 is passed on directly: bending parameters, rule selection and production workflow guidance.

  3. One-Stop Machines & Consumables

    Benders, lasers, creasing cutters, welders, knife cutters, manual tools and the matching consumables come from one supplier, simplifying purchasing and spares.

  4. Operator Training

    VOLDY trains customer operators on the self-developed control system and software, including DXF/DWG file preparation and daily machine maintenance.

  5. On-Site & Online Service

    Installation and after-sales support are available both on site and online, handled by VOLDY engineers rather than outsourced third parties.

FAQ

Automatic Bender Machine Questions, Answered

What is an automatic bender machine?

An automatic bender machine is a CNC-controlled die making machine that feeds, bends, cuts, nicks and punches steel rule into the precise two-dimensional profiles used in die-cutting forms, replacing manual rule bending with software-driven accuracy of ±0.03 mm and unattended production. VOLDY automatic benders read standard CAD files and combine several manual die-shop operations in one machine.

What steel rules can VOLDY automatic benders process?

VOLDY automatic benders process steel rule from 0.45 mm to 1.42 mm thick, with the VB360E and VB260L accepting rule heights up to 60 mm; the flagship VB630S handles 0.45–1.07 mm rules up to 30 mm high (23.8 mm for 1.07 mm rule) at ±0.03 mm feeding accuracy. The dedicated VB312E bends thin 0.45 mm, 8–12 mm low rules at ±0.02 mm per 300 mm.

What file formats do VOLDY machines support?

VOLDY automatic benders accept standard DXF and DWG CAD files, while VOLDY laser die cutters additionally support PLT, AI and CDR formats, so existing die layouts drawn in mainstream CAD and vector software transfer directly to production without conversion work. VOLDY's operator training covers file preparation for both machine types.

What power supply do VOLDY machines require?

VOLDY automatic benders run on single-phase 110V or 220V power at 50/60 Hz, matching standard supplies in North America, Europe and most other export markets. Higher-power equipment differs by model — for example the VLC1224 mixed-path laser requires three-phase 380V — and exact requirements are listed in each model's specification table.

Does VOLDY provide installation and training?

VOLDY provides operator training, installation support and complete die-room process know-how with every machine line, backed by both on-site and online after-sales service. Because VOLDY's control system and software are self-developed, training and troubleshooting are delivered directly by VOLDY engineers rather than a third party.

What is the HS code and packing for export?

VOLDY benders ship under HS Code 8462230000 in export-grade wooden crating designed for international sea freight. The bender line is factory-configured for 110V/220V 50/60Hz single-phase power with CE-certified product lines available, so machines are ready to install on arrival in most countries.

About VOLDY

A Chinese Die-Making Automation Manufacturer Since 2003

Voldy Machinery is committed to the research and development, production, sales and service of automation equipment for the die-making industry. Since 2003, we have been specializing in manufacturing automatic bender machines for laser dies. Our machines have won an excellent reputation among customers. In 2013, we expanded our product line to laser cutting machines, laser welding machines and automatic cutting machines for the die-making and packaging industries.

VOLDY Machinery Co., Ltd. is a Chinese manufacturer of automatic bender machines and die-making equipment, founded in 2003, headquartered in Dongguan, Guangdong, China, with a second facility in Foshan. For more than 20 years VOLDY has focused on automation R&D for die making, from steel rule bending to laser die board cutting, creasing, welding and knife cutting.

VOLDY is recognized as a National High-Tech Enterprise and holds 20+ patents and software copyrights. VOLDY's control system and operating software are developed in house, which lets the company customize machines for individual die shops and support them directly over the machine's full service life.

  • Founded2003 — 20+ years of die-making automation R&D
  • LocationsDongguan (HQ) + Foshan, Guangdong, China
  • Contactwd@voldy.cn (Dongguan HQ) · yu@voldy.cn (Foshan) · Landline +86-757-81795962
  • RecognitionNational High-Tech Enterprise; 20+ patents and software copyrights
  • CertificationCE-certified product lines
  • ScopeMachines, consumables, operator training and process know-how
VOLDY Machinery factory campus — headquarters in Dongguan, Guangdong, China

VOLDY Machinery factory campus — Dongguan headquarters, Guangdong, China.

VOLDY Machinery certificates — CE conformity certificates, utility model and design patents, software copyrights and high-tech product certificates

CE conformity certificates, utility model & design patents, software copyrights and high-tech product certificates.

VOLDY Machinery office at the Dongguan headquarters
Office — Dongguan HQ
VOLDY Machinery machining and assembly workshop
Machining workshop
VOLDY Machinery warehouse and inventory area
Warehouse & inventory

Contact

Request Specifications & a Quotation

Send the inquiry form to email VOLDY directly, or contact either facility by phone. Include your rule thickness, rule height, power supply and typical die size for a fast machine recommendation.

Dongguan HQ

No.16 Wenzeng Road, Dongcheng,
Dongguan, Guangdong, China

wd@voldy.cn

+86 139 0260 1693

Chat on WhatsApp

Foshan Facility

Xizi Industrial Road, Hecun, Lishui, Nanhai,
Foshan, Guangdong, China 528244

yu@voldy.cn

+86 186 7575 1693

Landline: +86-757-81795962

Your default email client will open with the message ready to send to wd@voldy.cn.
